70056 Electric locomotive 193 696-2, CD
Electric locomotive 193 696-2, CD
70056CDH0VIDCC
369,90€

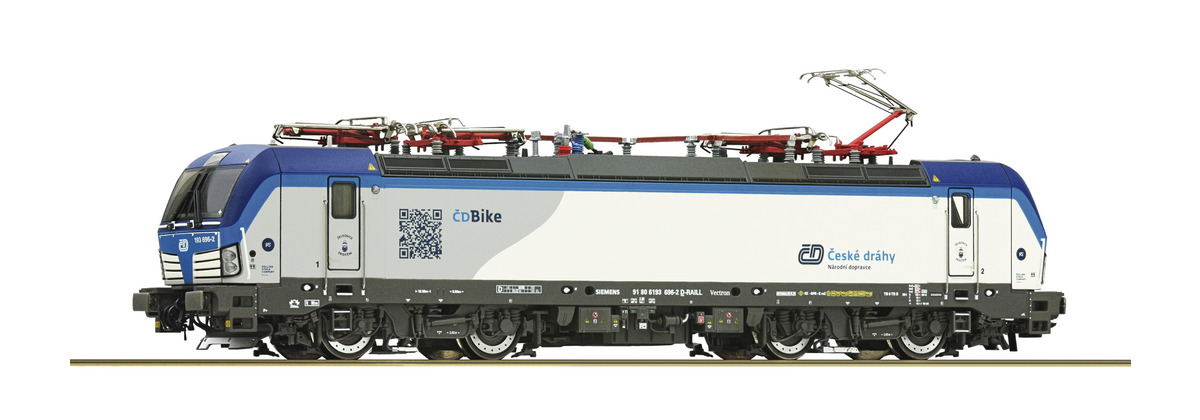

Electric locomotive 193 696 of the Czech State Railways.
■ In the latest CD design with advertising for the bicycle rental service
■ Cross-border operation in express train transport
■ Finely-detailed model with four roof pantographs
■ Free-standing handle rails, in part made from metal
■ Switchable high beam and individually switchable headlight or tail light and driver’s cab lighting in digital mode
Since 2017, the CD Vectron locomotives (193 289-298) have been used for international express trains, mainly on the EuroCity routes from Prague to Berlin/Hamburg/Kiel and to Budapest. In the year 2021, the CD purchased not only their first own Vectron, but also rented six further locomotives from the Slovakian leasing company Rolling Stock Lease (RSL). These received a different livery to those leased by ELL. In addition to the CD logo, one quarter of each side is grey and features a clearly-distinguishable QR code. Each locomotive advertises a different CD product. The 193 696 advertises CD Bike (bike rental).
Additional Information
Coupling | NEM shaft 362 with close coupling mechanism |
Minimum radius | 358 mm |
Flywheel | yes |
Number of driven axles | 4 |
Number of axles with traction tyres | 1 |
Article number | 70056 |
Scale | H0 |
Epoch | VI |
Railway Company | CD |
Head light | 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
LED head light | yes |
Additional light function | yes |
Interior lighting | Yes, LED, Digital switchable, Driver's cab lighting |
Control | DC Digital |
Interface | Electrical interface for traction units PluX22 |
Digital decoder | PluX22 |
Decoder-Type | MS450P22 |
Sound | yes |
Buffer capacitor | yes |
Length over buffer | 218 mm |
Spare parts
Art. No.: | Description | Price: | |||
---|---|---|---|---|---|
108332 | Kardanwelle L=28!9 mm | 1,65 € |
|
||
110407 | E-Lokfuehrer - grau | 2,75 € |
|
||
113376 | Motordaempfer | 1,65 € |
|
||
114850 | GF-Schraube + M1!6x4 mm | 1,45 € |
|
||
114966 | GF-Schraube M2x5 mm | 1,45 € |
|
||
115317 | SK-Schraube M1!6x5 mm - schw | 1,65 € |
|
||
115550 | Kurzkupplung - Vorentkupplung | 2,75 € |
|
||
122789 | Puffer eckig - umbragrau | 1,45 € |
|
||
122803 | TS - LZB Antennen - umbragrau | 2,75 € |
|
||
122822 | Schneckendeckel | 1,65 € |
|
||
122956 | TS - Blendesteckt. - umbragrau | 1,95 € |
|
||
129524 | Lautsprecher RA 15x11 DA 2403 | 10,40 € |
|
||
136487 | Pufferflansch l+r - umbragrau | 1,95 € |
|
||
137826 | Kontakthalter m.L. - umbragrau | 5,00 € |
|
||
139832 | TS - Bremsschlaeuche + Zughaken | 3,55 € |
|
||
141135 | Grundrahmen VECTRON - umbragr. | 15,20 € |
|
||
141136 | TS - Kinematik! Deichsel! ... | 4,07 € |
|
||
141137 | TS - Abdeckungen VECTRON | 1,65 € |
|
||
141139 | TS - Lautsprecherbox + Platten | 1,95 € |
|
||
141140 | TS - Schienenraeumer! Trafow.! | 8,80 € |
|
||
141144 | TS - Sandkasten! Antenne! ... | 3,55 € |
|
||
141148 | TS - Lichtleiter+Scheinwerfer | 12,20 € |
|
||
141149 | Fuehrerstand + Himmel - fehgrau | 4,07 € |
|
||
141150 | TS - Dachgitter! ... - weissalu | 5,95 € |
|
||
141151 | Antenne kurz - lichtgrau | 1,45 € |
|
||
141152 | Antenne VECT./1116 - bas.grau | 1,45 € |
|
||
141154 | Tuergriff VECTRON L=17!8 - Niro | 1,65 € |
|
||
141155 | TS - Wischer l+r! Horn - schw. | 2,75 € |
|
||
141156 | TS - Isolatoren VECT. - bl/r/g | 1,95 € |
|
||
141160 | Radsatz m. Zahnrad o. Haftring | 8,80 € |
|
||
141161 | Radsatz m.2 Haftringen+Zahnrad | 10,40 € |
|
||
141162 | Pufferflansch li+re Vitrine | 1,65 € |
|
||
141163 | Steckdose VECTRON - umbragrau | 1,45 € |
|
||
141200 | Antenne lang VECTR. - lichtgr. | 1,45 € |
|
||
141206 | TS - Isolatoren - verkehrsgrau | 2,75 € |
|
||
141559 | UIC-Dose VECTRON - umbragrau | 1,45 € |
|
||
141583 | Verteilerplatte A01 - weissalu. | 1,45 € |
|
||
141659 | Innenbeleuchtung Fst. VECTRON | 1,65 € |
|
||
142219 | TS - Griffe VECTRON - reinweiss | 2,75 € |
|
||
144438 | TS - Dachleitungen - weissalum. | 5,95 € |
|
||
144603 | Stirn+Seitenfenster VECT.Stern | 5,00 € |
|
||
145556 | Motor KM m.2 Schwungm. + K.Sch | 42,40 € |
|
||
145557 | Motordistanzplatte KM | 1,65 € |
|
||
145560 | M-Kontaktfeder D=2!4 L=14!3 mm | 1,65 € |
|
||
145561 | M-Kontaktfeder D=2!4 L=7!15 mm | 1,65 € |
|
||
145656 | Platine VECT. o. Zugz. EU So. | 38,80 € |
|
||
146345 | TS - Antennen! Flansch - grau | 5,00 € |
|
||
146560 | S-ACT Balisenant.1+2 - umb.gr. | 1,95 € |
|
||
147377 | Sounddecoder MS450 Pl.22 ZIMO | 173,00 € |
|
||
147619 | Getriebesatz 2-tlg. - umbragr. | 7,00 € |
|
||
147620 | Getriebeboden VECT. - umbragr. | 3,55 € |
|
||
148576 | Schneckensatz Z=1 m. Kardank. | 10,40 € |
|
||
149305 | Treppe DG-Blende bedr. umb.gr. | 1,65 € |
|
||
149566 | Schuerze la. VECT. - 6193 696-2 | 2,75 € |
|
||
149567 | Gehaeuse kpl.70056 - 6193 696-2 | 149,00 € |
|
||
149568 | Frontplatte 70056 - 6193 696-2 | 4,07 € |
|
||
149569 | Dachbaugruppe kpl. CD - 4 Sta. | 111,00 € |
|
||
149570 | DG-Blende Ind.+ELM - umbragr. | 8,80 € |
|
||
149571 | Zuruestbeutel 1 - VECTRON 6193 | 13,60 € |
|
||
149846 | Zuruestbeutel 2 - Flansch! KK! | 15,20 € |
|
||
40070 | Traction tyre set DC | 7,60 € |
|
||
85488 | Stromabnehmer Typ 8/DB | 36,00 € |
|
||
86108 | Beilagscheibe 2!1x4 / 0!2 mm | 1,45 € |
|
||
86208 | Zugfeder D=2!5 L=2!7/5!8 mm | 1,45 € |
|
||
86418 | Zahnrad Z=17 M0!4 gerade | 1,95 € |
|
||
86419 | Schneckenzahnrad Z=16re/17ger | 2,75 € |
|
||
86704 | Schnecke Z=1 D=7,3 M0,6 rechts | 2,75 € |
|
||
87129 | Kardanschale kurz 1,5 mm | 1,65 € |
|
||
89246 | Standardkupplung | 2,75 € |
|
||
89749 | Lager f. Schneckenachse D=2H7 | 2,75 € |
|
||
94953 | Zahnrad Z=12 M0!4 ger. - gelb | 1,45 € |
|
||
96370 | Blister - VECTRON BR193/1293 | 13,60 € |
|
