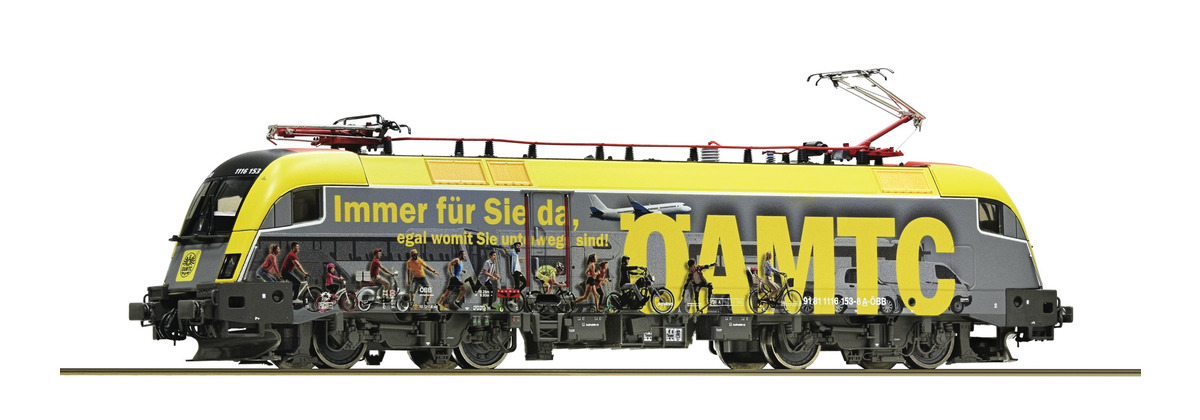

70509 Electric locomotive 1116 153-8 “ÖAMTC”, ÖBB
Electric locomotive 1116 153-8 “ÖAMTC”, ÖBB
70509ÖBBH0VIDCC
Electric locomotive 1116 153 of the Austrian Federal Railways.
A suitable Railjet set can be built with items 74038 and 74041.
The model is equipped with a four-pole electric coupling on one side. For push-pull train operation the current draw between the locomotive and the control cab coach of the Roco Railjet can be switched with a DIP switch. This is only possible if the control cab coach has an electric coupling.
■ Sophisticated printing - ÖAMTC design
■ Switchable high beam and individually switchable headlight or tail light in digital mode
■ Licensed ÖBB model
■ Z21 driver's cab available
The ÖBB's well-known advertising locomotive 1116 153 underwent a redesign in autumn 2020. Under the motto "Immer für Sie da, egal womit Sie unterwegs sind""Always there for you, no matter what you are travelling with", the ÖBB covered it with a new, modern ÖAMTC advertising design. In the field of advertising locomotives, the Austrian Federal Railways and the "Österreichische Automobil-, Motorrad- und Touringclub" are long-standing partners.
Additional Information
Coupling | NEM shaft 362 with close coupling mechanism |
Minimum radius | 358 mm |
Flywheel | yes |
Number of driven axles | 4 |
Number of axles with traction tyres | 1 |
Article number | 70509 |
Scale | H0 |
Epoch | VI |
Railway Company | ÖBB |
Head light | 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
LED head light | yes |
Additional light function | yes |
Control | DC Digital |
Interface | Electrical interface for traction units PluX22 |
Digital decoder | PluX22 |
Decoder-Type | MS450P22 |
Sound | yes |
Buffer capacitor | yes |
Length over buffer | 221 mm |
Downloads
Spare parts
Art. No.: | Description | Price: | |||
---|---|---|---|---|---|
110407 | E-Lokführer - grau | 2,75 € | |||
110472 | Kanister + Pumpensatz | 3,55 € | |||
110474 | Puffer eckig - umbragrau | 1,45 € | |||
110493 | Hauptschalter - graubraun | 1,65 € | |||
110494 | Stützisolator kl. - graubraun | 1,45 € | |||
110496 | Überspannungsableiter - taubenblau | 1,45 € | |||
110498 | Dachleitung - feuerrot | 2,75 € | |||
110499 | Isolatorenverbindung - kupfer | 1,45 € | |||
111973 | Führerstand Rh1116 - grauweiß | 2,75 € | |||
112852 | Steuerungskasten - weißaluminium | 1,45 € | |||
113376 | Motordaempfer | 1,65 € | |||
114836 | GF-Schraube + M1!6x6 mm - schw | 1,45 € | |||
114850 | GF-Schraube + M1,6x4 mm | 1,45 € | |||
114966 | GF-Schraube M2x5 mm | 1,45 € | |||
115161 | SK-Schraube + M1,6x4 mm | 1,45 € | |||
115550 | Kurzkupplung - Vorentkupplung | 2,75 € | |||
115738 | Oberspannungs-Wandler lichtgr. | 1,45 € | |||
122820 | Schneepflug - umbragrau | 2,75 € | |||
122822 | Schneckendeckel | 1,65 € | |||
122829 | Schneckensatz Z=2 m. K. Fstd.1 | 10,40 € | |||
122967 | Griff vorne seitlich - Niro | 1,45 € | |||
123785 | Scheibenwischer li.+re. - schwarz | 2,75 € | |||
126929 | TS - Griffe 1116 - niro/ch.sw | 2,75 € | |||
127541 | Zahnrad Z=17 M0!4 | 1,65 € | |||
127542 | Zahnrad Z=12 M0!4 | 1,65 € | |||
127630 | TS - Pufferbrust f.Betrieb 152 | 1,65 € | |||
129524 | Lautsprecher RA 15x11 DA 2403 | 10,40 € | |||
129664 | TS - Lichtleiter Rh1116/ES64 | 2,75 € | |||
129665 | Schneckenzahnrad Z=17/19 schw. | 1,95 € | |||
129673 | TS - Gehäuse lack. - weißaluminium | 2,75 € | |||
129981 | TS - Fenster+Stirnlampe weissal | 8,80 € | |||
130003 | TS - Kupplung - umbragrau | 4,07 € | |||
130034 | TS - LZB Antennen+Antennebox | 2,75 € | |||
130035 | Frontgriffstange - umbragrau | 1,65 € | |||
133806 | TS - Kupplung 4-pol. - umbragr | 13,60 € | |||
133807 | Schienenraeumer li.+re. umbragr | 1,95 € | |||
135423 | LED-Abdeckung Rh1116 | 1,95 € | |||
135656 | Elektr. Kupplungsbuchse kpl. | 10,40 € | |||
135882 | OElwanne 1116 bedr. - umbragrau | 1,95 € | |||
135884 | TS - Lautsprecherbox + Halter | 5,00 € | |||
135965 | TS - Antennen - umbragrau | 2,75 € | |||
136442 | Ölleitung - weißaluminium | 1,45 € | |||
136487 | Pufferflansch l+r - umbragrau | 1,95 € | |||
136488 | Rohr rechts 1116 - umbragrau | 1,65 € | |||
136913 | Grundrahmen 1116 NEU - umbragr | 15,20 € | |||
137826 | Kontakthalter m.L. - umbragrau | 5,00 € | |||
138829 | Schneckensatz Z=2 m. K. Fstd.2 | 10,40 € | |||
140452 | Kuppeladapter Analog-Digital | 3,55 € | |||
140530 | Batteriekasten 1+2 Licht i.Du. | 2,75 € | |||
141085 | Pufferschuerzen l+r Rh1116 bedr | 2,75 € | |||
141152 | Antenne VECT./1116 - basaltgrau | 1,45 € | |||
141162 | Pufferflansch li+re Vitrine | 1,65 € | |||
144639 | Dach Rh1116 lack. - umbragrau | 2,75 € | |||
144838 | Zuruestbeutel - OEBB Rh1116 | 13,60 € | |||
145560 | M-Kontaktfeder D=2,4 L=14,3 mm | 1,65 € | |||
145561 | M-Kontaktfeder D=2,4 L=7,15 mm | 1,65 € | |||
146015 | Pufferbrust Rh1116 bedr. | 1,95 € | |||
146017 | Antenne 2 Rh1116 - umbragrau | 1,45 € | |||
146018 | Kardanwelle KM Rh1116 | 1,65 € | |||
146020 | Motor KM 2xSchwungm.+Kardansch | 42,40 € | |||
146021 | Motordistanzrahmen KN Rh1116 | 1,95 € | |||
146022 | DG-Blende l+r Rh1116 - umb.gr | 8,80 € | |||
146023 | Radsatz 4 m.Zahnrad o.Haftring | 7,00 € | |||
146024 | Radsatz 2/3 m.Zahnr. o.Haftr. | 8,80 € | |||
146025 | Radsatz 1 m.Haftring m.Zahnrad | 8,80 € | |||
146027 | Platine kpl. 1116 KM Pl.22 So. | 36,00 € | |||
147377 | Sounddecoder MS450 Pl.22 ZIMO | 173,00 € | |||
147619 | Getriebesatz 2-tlg. - umbragr. | 7,00 € | |||
147644 | Getriebeboden 1116 - umbragrau | 4,07 € | |||
147645 | Gehaeuse kpl.70509 - 1116 153-8 | 111,00 € | |||
147646 | Kabelbaum Rh1116 So./AC-So. | 10,40 € | |||
147677 | Platine KM Pl.22 f. Dig.K.+So. | 61,30 € | |||
40066 | Traction tyre set DC | 6,90 € | |||
85353 | Stromabnehmer Typ 8 - niro DB | 24,80 € | |||
86108 | Beilagscheibe 2!1x4 / 0!2 mm | 1,45 € | |||
86208 | Zugfeder D=2,5 L=2,7/5,8 mm | 1,45 € | |||
86216 | Zugfeder D=2!5 W=15!5 | 1,95 € | |||
86702 | Schnecke Z=2 D=7!4 M0!5 rechts | 2,75 € | |||
87129 | Kardanschale kurz 1,5 mm | 1,65 € | |||
89246 | Standardkupplung | 2,75 € | |||
89749 | Lager f. Schneckenachse D=2H7 | 2,75 € | |||
96297 | VCI-Rostschutzfolie 160x200 mm | 1,95 € | |||
96393 | Hartkartonsch.UT 336x99x48 mm | 7,00 € | |||
96394 | Hartkartonsch.OT 336x99x48 mm | 7,00 € |
