71354 Electric locomotive class E 94, DRB
Electric locomotive class E 94, DRB
71354DRG 1937-1949H0IIDCC

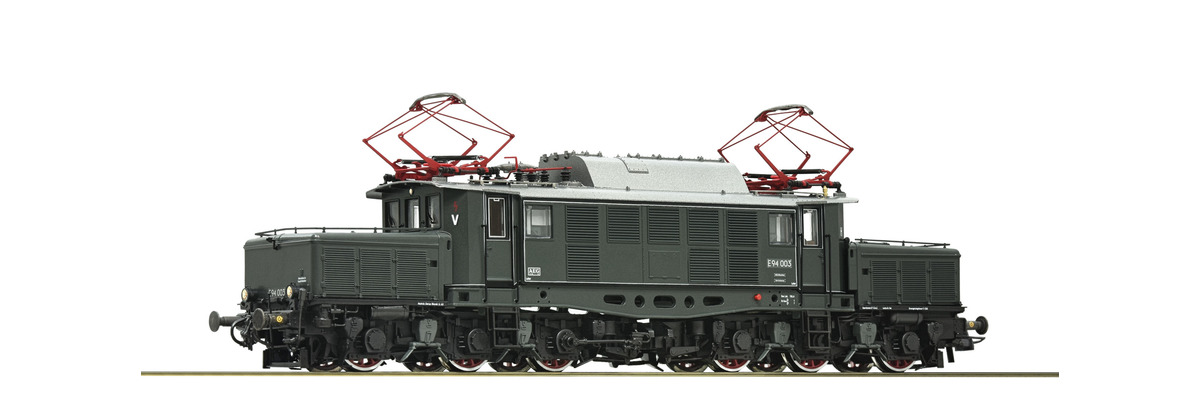

Electric locomotive class E 94 of the Deutsche Reichsbahn. (DRG from 1937 to 1949).
■ Version in grey livery with white wheel tyres
■ Wheelsets with low wheel flanges
■ Metal handles and handrails
■ With switchable headlight or tail light and driver’s cab lighting in digital mode
■ With set of etched signs included
The class E 94 was supplied by the "Allgemeine Elektrizitäts Gesellschaft" (AEG) in Berlin Hennigsdorf to the former Deutsche Reichsbahn for use in front of heavy goods trains at the Brenner Pass. The purchase of the new class E 94 electric locomotives was only made possible by their classification as war-essential capital goods. The DR ordered 285 heavy six-axle locomotives, but only 145 were delivered by the end of the war. The locomotive was authorized to run at a maximum speed of 90 km/h; the hourly output was 3,240 kW, the starting power was 3,900 kW.
Additional Information
Coupling | NEM shaft 362 without close coupling mechanism |
Minimum radius | 358 mm |
Flywheel | yes |
Number of driven axles | 6 |
Number of axles with traction tyres | 2 |
Article number | 71354 |
Scale | H0 |
Epoch | II |
Railway Company | DRG 1937-1949 |
Motor | 5-pole motor |
Head light | Digitally switchable triple front headlights |
LED head light | yes |
Additional light function | yes |
Interior lighting | Yes, LED, Digital switchable, Driver's cab lighting |
Control | DC Digital |
Interface | Electrical interface for traction units PluX22 |
Digital decoder | PluX22 |
Decoder-Type | MX645P22 |
Sound | yes |
Length over buffer | 213 mm |
Downloads
Spare parts
Art. No.: | Description | Price: | |||
---|---|---|---|---|---|
101208 | Lokführer gerade - grau | 2,75 € | |||
105054 | Motorauflage | 1,65 € | |||
105467 | Leitung 3 E94/1020 - karminrot | 1,45 € | |||
107808 | Attrappenrahmen klein schwarz | 1,65 € | |||
112920 | Kardanwelle | 1,45 € | |||
112921 | Schneckensatz Z=1 m. Kardansch | 10,40 € | |||
114197 | Bürstenfeder H0 D=2!8/1!6 L=8 | 1,45 € | |||
114877 | GF-Schraube + M2x4 mm | 1,45 € | |||
114923 | GF-Schraube M2x8 mm - schw. | 1,45 € | |||
114966 | GF-Schraube M2x5 mm | 1,45 € | |||
115550 | Kurzkupplung - Vorentkupplung | 2,75 € | |||
116876 | M-Kontaktfeder D=2!4 L=11!6 mm | 1,45 € | |||
117152 | Kontakthalter kpl. - schwarz | 5,00 € | |||
123560 | TS - Blendensteckteile - schw. | 5,95 € | |||
129000 | Sounddecoder MX645 Pl.22 ZIMO | 173,00 € | |||
129524 | Lautsprecher RA 15x11 DA 2403 | 10,40 € | |||
131685 | Lichtnagel lang BR254 | 1,65 € | |||
134067 | Lautsprecherbox 15x11 mm | 1,95 € | |||
135686 | Halteplatte E94/1020 - Zinkal | 7,00 € | |||
135695 | Getriebe BR194 lack. - schwarz | 7,00 € | |||
135696 | Rangiergriff E94/194 - schwarz | 1,45 € | |||
135700 | Fuehrerstand E94 - ockerbraun | 2,75 € | |||
135701 | Stirnfenster BR194 bedr. | 1,95 € | |||
136328 | SK-Schraube - 6!5 mm m. Spitze | 1,65 € | |||
136498 | Scheibenwischer - chem.schwarz | 1,95 € | |||
136524 | Grundrahmen / Mittelteil lack. | 15,20 € | |||
136526 | Sandrohr BR194 lack. - blaugr. | 1,65 € | |||
136532 | TS - Gehaeuse E94 lack. blaugr. | 4,07 € | |||
136533 | TS - Laufstege - graualuminium | 5,95 € | |||
136534 | Linse oben E94/BR194 | 1,45 € | |||
136535 | Lichtabdeckung E94/Rh1020 | 1,65 € | |||
136536 | Tuergriff lackiert - schwarz | 2,75 € | |||
136539 | TS - Lampen + Lichtabdeckung | 5,95 € | |||
136540 | TS - Lichtnagel E94 / BR254 | 1,95 € | |||
136542 | Zuruestbeutel - E-Lok E94/BR194 | 7,00 € | |||
136546 | Platine kpl. Pl.22 m. LED-Pl. | 55,30 € | |||
136547 | LED-Platine kpl. - 2 LED´s w. | 24,80 € | |||
138510 | Blende 1 kpl. E94 - schwarz | 13,60 € | |||
138511 | Blende 2 kpl. E94 - schwarz | 13,60 € | |||
138512 | Kuehlschlange E94 - weissalum. | 1,65 € | |||
138514 | Gasdruckschalter - graualumin. | 1,65 € | |||
139008 | Radsatz m. Zahnrad o. Haftring | 7,00 € | |||
139009 | Radsatz m.2Haftring. m.Zahnrad | 8,80 € | |||
147785 | Gehaeuse kpl. 71354 - E94 003 | 0,00 € | |||
147786 | Puffer gew. E94 bedr. - schw. | 2,75 € | |||
147787 | Puffer fl. E94 bedr. - schw. | 2,75 € | |||
147788 | Vorbaugeh.1 71354 - E94 003 | 21,00 € | |||
147789 | Vorbaugeh.2 71354 - E94 003 | 21,00 € | |||
147790 | Tafelsatz 71354 - DRB E94 003 | 8,80 € | |||
40070 | Traction tyre set DC | 7,60 € | |||
85102 | Motor m. 2 Schwungmassen | 55,30 € | |||
85348 | Stromabnehmer SB39 schw.Wippe | 24,80 € | |||
85723 | Schraube Drehgestell M2 L=10 m | 1,65 € | |||
86108 | Beilagscheibe 2!1x4 / 0!2 mm | 1,45 € | |||
86201 | Kupplungsdruckfed.RD2!3x6x0!15 | 1,45 € | |||
86416 | Schneckenzahnrad Z=19re./14ge. | 1,65 € | |||
86417 | Zahnrad Z=19 M0!4 gerade aussen | 1,45 € | |||
86460 | Zahnrad Z=18 M0!4 gerade weiss | 1,45 € | |||
86467 | Zahnrad Z=29 M0!4 gerade aussen | 1,45 € | |||
86703 | Schnecke Z=1 D=4!9 M0!4 rechts | 1,95 € | |||
87152 | Kardanschale 8,0 mm - schwarz | 1,45 € | |||
87843 | Motorkardanschale 4!8 mm | 1,65 € | |||
88001 | Stuetzisolator 7 - graubraun | 1,45 € | |||
88002 | Lokpfeife - Messing | 2,75 € | |||
88005 | Trennschalter 13 - graubraun | 1,45 € | |||
88008 | Isolator 3 kurz - schwarz | 1,45 € | |||
88010 | Isolator 4 lang - braun | 1,45 € | |||
88085 | Isolator 5 - graubraun | 1,45 € | |||
88150 | Isolator m. Loch - graubraun | 1,65 € | |||
89246 | Standardkupplung | 2,75 € | |||
89700 | Achse D=2!6x9!3 mm | 1,65 € | |||
89701 | Achse D=2!6x11!5 mm | 1,45 € | |||
89743 | Kohlebuerste HO | 2,75 € | |||
89749 | Lager f. Schneckenachse D=2H7 | 2,75 € | |||
93043 | TS - Blendensteckteile - schw. | 7,00 € | |||
93053 | Seitenfenster BR194 / BR254 | 1,95 € | |||
93056 | Steckdose - feuerrot | 1,45 € | |||
93057 | Hauptleitung lack. - karminrot | 2,75 € | |||
93058 | Trafoleitung lack. - karminrot | 2,75 € | |||
93079 | Schneckendeckel E94/194/Rh1020 | 1,95 € | |||
93080 | Treppe BR94/E94/Rh1020 - schw. | 1,65 € | |||
93081 | Kupplungshalter E94/1020 schw. | 1,45 € | |||
93084 | DG-Halteplatte E94/Rh1020 | 7,00 € | |||
93085 | Getriebeboden E94/1020 - schw. | 7,00 € | |||
96297 | VCI-Rostschutzfolie 160x200 mm | 1,95 € | |||
96395 | Hartkartonsch.UT 405x99x48 mm | 10,40 € | |||
96396 | Hartkartonsch.OT 405x99x48 mm | 10,40 € | |||
97686 | Stromabnehmerisolat. graubraun | 1,95 € | |||
97883 | Stromabnehmerantrieb - karminrot | 1,45 € |
