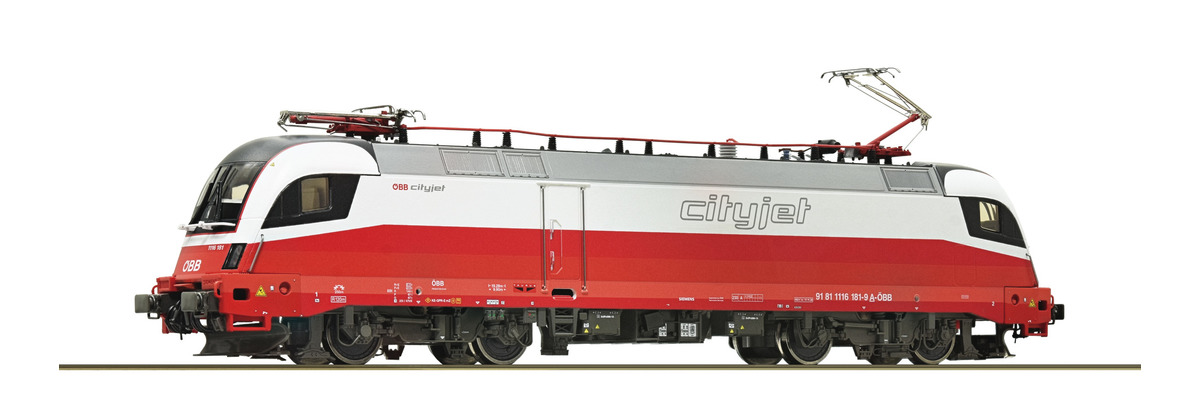

7510024 Electric locomotive 1116 181-9, ÖBB
Electric locomotive 1116 181-9, ÖBB
7510024ÖBBH0VIDCC
Electric locomotive 1116 181 of the Austrian Federal Railways.
■ Cityjet design
■ Current operating condition with black roof hood
■ Switchable high beam and individually switchable headlight or tail light in digital mode
■ Used in front of passenger and goods trains
■ Licensed ÖBB model
■ Z21 driver’s cab available
In 2019, the ÖBB initiated an upgrade programme for the renewal of double-decker trains (DOSTO). In this way, approx. 100 coaches are to be optimised to the modern Cityjet standard by 2023. The modernisation comprises amongst other things on-board WLAN, reupholstered seats, multi-purpose areas in each intermediate coach with more space for bicycles, prams and baggage as well as newly-designated quiet zones.
In May 2022, halfway through the running DOSTO upgrade programme, the electric locomotive 1116 181 was painted in the Cityjet-design. In this way, the ÖBB is sending an important signal advertising their attractive public transport offers, in particular for local commuter transport in Lower Austria.
Additional Information
Coupling | NEM shaft 362 with close coupling mechanism |
Minimum radius | 358 mm |
Flywheel | yes |
Number of driven axles | 4 |
Number of axles with traction tyres | 1 |
Article number | 7510024 |
Scale | H0 |
Epoch | VI |
Railway Company | ÖBB |
Head light | 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
LED head light | yes |
Additional light function | yes |
Control | DC Digital |
Interface | Electrical interface for traction units PluX22 |
Digital decoder | PluX22 |
Decoder-Type | MS450P22 |
Sound | yes |
Buffer capacitor | yes |
Length over buffer | 221 mm |
Spare parts
Art. No.: | Description | Price: | |||
---|---|---|---|---|---|
110407 | E-Lokführer - grau | 2,75 € | |||
110472 | Kanister + Pumpensatz | 3,55 € | |||
110474 | Puffer eckig - umbragrau | 1,45 € | |||
110490 | TS - Griffe Rh1116 u. Ä. - Niro | 2,75 € | |||
110493 | Hauptschalter - graubraun | 1,65 € | |||
110494 | Stützisolator kl. - graubraun | 1,45 € | |||
110496 | Überspannungsableiter - taubenblau | 1,45 € | |||
110498 | Dachleitung - feuerrot | 2,75 € | |||
110499 | Isolatorenverbindung - kupfer | 1,45 € | |||
111973 | Führerstand Rh1116 - grauweiß | 2,75 € | |||
112852 | Steuerungskasten - weißaluminium | 1,45 € | |||
113376 | Motordaempfer | 1,65 € | |||
114836 | GF-Schraube + M1!6x6 mm - schw | 1,45 € | |||
114850 | GF-Schraube + M1,6x4 mm | 1,45 € | |||
114966 | GF-Schraube M2x5 mm | 1,45 € | |||
115161 | SK-Schraube + M1,6x4 mm | 1,45 € | |||
115550 | Kurzkupplung - Vorentkupplung | 2,75 € | |||
115738 | Oberspannungs-Wandler lichtgr. | 1,45 € | |||
115978 | TS - Isolat.+Antenne - lichtgrau | 3,55 € | |||
120769 | TS - Daempfer 1+2 - umbragrau | 1,95 € | |||
122820 | Schneepflug - umbragrau | 2,75 € | |||
122822 | Schneckendeckel | 1,65 € | |||
122829 | Schneckensatz Z=2 m. K. Fstd.1 | 10,40 € | |||
122967 | Griff vorne seitlich - Niro | 1,45 € | |||
123163 | TS - LZB Antennenkasten umb.gr | 1,65 € | |||
123785 | Scheibenwischer li.+re. - schwarz | 2,75 € | |||
127630 | TS - Pufferbrust f.Betrieb 152 | 1,65 € | |||
129524 | Lautsprecher RA 15x11 DA 2403 | 10,40 € | |||
129664 | TS - Lichtleiter Rh1116/ES64 | 2,75 € | |||
129673 | TS - Gehäuse lack. - weißaluminium | 2,75 € | |||
129981 | TS - Fenster+Stirnlampe weissal | 8,80 € | |||
130003 | TS - Kupplung - umbragrau | 4,07 € | |||
130034 | TS - LZB Antennen+Antennebox | 2,75 € | |||
135882 | OElwanne 1116 bedr. - umbragrau | 1,95 € | |||
135884 | TS - Lautsprecherbox + Halter | 5,00 € | |||
136442 | Ölleitung - weißaluminium | 1,45 € | |||
136487 | Pufferflansch l+r - umbragrau | 1,95 € | |||
136488 | Rohr rechts 1116 - umbragrau | 1,65 € | |||
136913 | Grundrahmen 1116 NEU - umbragr | 15,20 € | |||
137826 | Kontakthalter m.L. - umbragrau | 5,00 € | |||
138829 | Schneckensatz Z=2 m. K. Fstd.2 | 10,40 € | |||
140530 | Batteriekasten 1+2 Licht i.Du. | 2,75 € | |||
141152 | Antenne VECT./1116 - basaltgrau | 1,45 € | |||
141162 | Pufferflansch li+re Vitrine | 1,65 € | |||
144075 | TS - LED-Abdeckung Rh1116 | 2,75 € | |||
144639 | Dach Rh1116 lack. - umbragrau | 2,75 € | |||
145560 | M-Kontaktfeder D=2,4 L=14,3 mm | 1,65 € | |||
145561 | M-Kontaktfeder D=2,4 L=7,15 mm | 1,65 € | |||
146017 | Antenne 2 Rh1116 - umbragrau | 1,45 € | |||
146018 | Kardanwelle KM Rh1116 | 1,65 € | |||
146020 | Motor KM 2xSchwungm.+Kardansch | 42,40 € | |||
146021 | Motordistanzrahmen KN Rh1116 | 1,95 € | |||
146023 | Radsatz 4 m.Zahnrad o.Haftring | 7,00 € | |||
146024 | Radsatz 2/3 m.Zahnr. o.Haftr. | 8,80 € | |||
146025 | Radsatz 1 m.Haftring m.Zahnrad | 8,80 € | |||
146027 | Platine kpl. 1116 KM Pl.22 So. | 36,00 € | |||
147377 | Sounddecoder MS450 Pl.22 ZIMO | 173,00 € | |||
147619 | Getriebesatz 2-tlg. - umbragr. | 7,00 € | |||
147644 | Getriebeboden 1116 - umbragrau | 4,07 € | |||
149176 | Pufferbrust 1116 bedr. 7510024 | 1,95 € | |||
149177 | Pufferschuerzen l+b 7510024 | 2,75 € | |||
149178 | DG-Blende l+b 7510024 - umb.gr | 8,80 € | |||
149179 | Gehaeuse kpl.7510024-1116 181-9 | 139,40 € | |||
149180 | Zuruestbeutel7510024-1116 181-9 | 13,60 € | |||
149181 | Frontgriffstange 1116 cityjet | 1,65 € | |||
40066 | Traction tyre set DC | 6,90 € | |||
85353 | Stromabnehmer Typ 8 - niro DB | 24,80 € | |||
86108 | Beilagscheibe 2!1x4 / 0!2 mm | 1,45 € | |||
86208 | Zugfeder D=2,5 L=2,7/5,8 mm | 1,45 € | |||
86413 | Schneckenzahnrad Z=19re./17ge. | 1,95 € | |||
86418 | Zahnrad Z=17 M0,4 gerade | 1,95 € | |||
86702 | Schnecke Z=2 D=7!4 M0!5 rechts | 2,75 € | |||
87129 | Kardanschale kurz 1,5 mm | 1,65 € | |||
89246 | Standardkupplung | 2,75 € | |||
89749 | Lager f. Schneckenachse D=2H7 | 2,75 € | |||
94953 | Zahnrad Z=12 M0,4 gerade - gelb | 1,45 € | |||
96297 | VCI-Rostschutzfolie 160x200 mm | 1,95 € | |||
96393 | Hartkartonsch.UT 336x99x48 mm | 7,00 € | |||
96394 | Hartkartonsch.OT 336x99x48 mm | 7,00 € |
